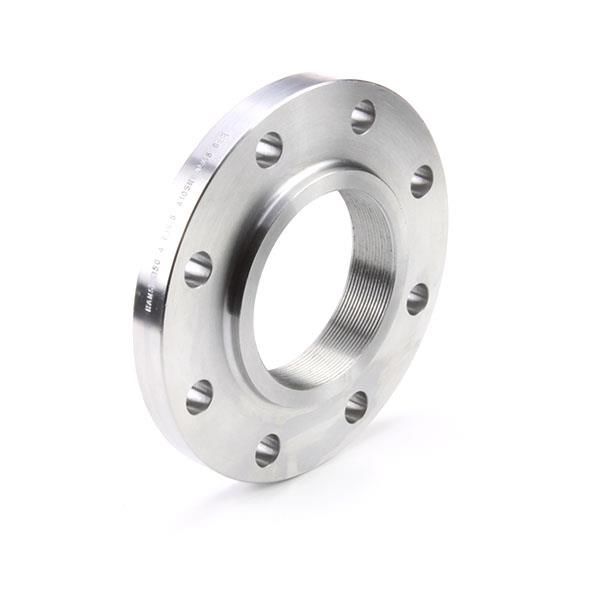

Steel Ansi 150 RF Threaded Female BSP
Ansi 150 Raised Face Threaded Female BSP
Dimensional ASME B16.5
Pressure rating based on Ambient Temperature
| Part # | Description | Size | Unit | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 209TB-015 | 1/2 ” Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
15mm | Each | |||||||
|
||||||||||
| 209TB-020 | 3/4 ” Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
20mm | Each | |||||||
|
||||||||||
| 209TB-025 | 1″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
25mm | Each | |||||||
|
||||||||||
| 209TB-032 | 1-1/4 ” Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
32mm | Each | |||||||
|
||||||||||
| 209TB-040 | 1-1/2 ” Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
40mm | Each | |||||||
|
||||||||||
| 209TB-050 | 2″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
50mm | Each | |||||||
|
||||||||||
| 209TB-065 | 2-1/2″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
65mm | Each | |||||||
|
||||||||||
| 209TB-080 | 3″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
80mm | Each | |||||||
|
||||||||||
| 209TB-100 | 4″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
100mm | Each | |||||||
|
||||||||||
| Part # | Description | Size | Unit | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 209TB-015 | 1/2 ” Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
1/2" | Each | |||||||
|
||||||||||
| 209TB-020 | 3/4 ” Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
3/4" | Each | |||||||
|
||||||||||
| 209TB-025 | 1″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
1" | Each | |||||||
|
||||||||||
| 209TB-032 | 1-1/4 ” Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
1-1/4" | Each | |||||||
|
||||||||||
| 209TB-040 | 1-1/2 ” Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
1-1/2" | Each | |||||||
|
||||||||||
| 209TB-050 | 2″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
2" | Each | |||||||
|
||||||||||
| 209TB-065 | 2-1/2″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
2-1/2" | Each | |||||||
|
||||||||||
| 209TB-080 | 3″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
3" | Each | |||||||
|
||||||||||
| 209TB-100 | 4″ Forged Carbon Steel Flange Ansi 150 RF Threaded Female BSP |
4" | Each | |||||||
|
||||||||||
